Atlas BP8000 8000 Pound Base Plate Automotive Lift
$3 099.00
Sold out
Shipping Options
Please choose
Sold out
Product Details
Brand: Atlas Automotive Equipment (ATE)
UPC: 810524027281
Important Shipping and Payment Options:
Customer Pickup: Please choose the option of "customer pickup" if you plan on picking the lift up yourself at our location. There is no shipping charge on customer pickup orders. We will not load your pickup under any circumstances. This includes all Pickup trucks including those with with 8' beds. Please bring a trailer or flat bed truck at least 10' long and capable of handling 1800 pounds. We cannot load enclosed trailers with fold down rear doors.
Payment options: Please call us about your payment options at 877-401-8703 before placing your order via the website.
LTL Truck Freight: We can ship direct to you anywhere in the 48 States. Lift will be shipped in van body tractor trailer or straight truck. Lift gate service is not availble for this lift. Customer is 100% responsible for unloading. You will need a forklift, skid loader or rollback to unload. You cannot unload this product with manpower. Driver has the right to refuse delivery if you are not prepared with equipment to unload. It is best to call us at 877-401-8703 to discuss your shipping options.
If the truck does not have access to your property or you don't have the neccesary equipment to unload, you may pick the lift up at the closest LTL Freight Terminal. You can then use your own equipment to pick up. They will not load your pickup under any circumstances. This includes all Pickup trucks including those with with 8' beds. Please use a trailer or flat bed truck at least 10' long and capable of handling 1500 pounds. They cannot load enclosed trailers with fold down rear doors.
Freight Damage: Customer is 100% responsible for reporting freight damage to us. All damage must be reported within 72 hours. If you think the unit is damaged and unusable, you have the right to refuse delivery. Please contact us at 877-401-8703 to report any issues with damage or LTL freight.
Payment options: Please use website for all payments on LTL Freight.
Intallation: This lift is sold as a do it yourself installation. We do not install or have any recommended installers.

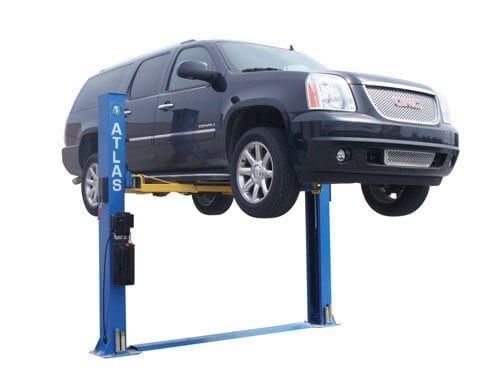

The Atlas® BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set. This lift is not certified by the American Lift Instatute.
⚠️ California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm.
For more information, visit www.P65Warnings.ca.gov.
| Atlas® ATTD-BP8000 Specifications | ||
| Capacity | 8,000 LB. | |
| Overall Height | 108" (9’) | |
| Overall Floor Width | 132" (11’) | |
| Outside Column to Outside Column | 124" (10’ 4") | |
| Maximum Lift Height (Without Adapters) | 75 1/2" | |
| Maximum Lift Height (With Adapters) | 86 1/2" | |
| Minimum Arm Height | 4" | |
| Inside Column | 109 1/8” (9’ 1 1/8”) | |
| Drive Thru | 99” (8’ 3”) | |
| Column Size | 7 1/4" x 11" | |
| Column Thickness of Steel | 6mm | |
| Base Of Lift | 17 1/2" x 17 3/4" | |
| Motor/Electrical Requirement | 220 volt single (1) phase.
A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,300 LBS. | |
| Adapter Heights | 4 Each 2”, 3”, 6” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
| Requires a minimum of 4" of concrete with a 3000 psi. rating | ||
